APP·01 / Project reader

EYEPIECE

A free Mac app that reads your Ableton Live, Logic, GarageBand or FL Studio project and writes a snapshot in text for your AI — and, from 0.2, a plug-in that reads it from inside your DAW.

Free Mac app · VST3 · AU macOS 11+ · Windows (VST3)

macOS 11+ · app + VST3 · AU (.pkg) · universal · signed & notarized by Apple · Windows 10+ · the VST3 plug-in only · unsigned ZIP, not yet tried in a real DAW

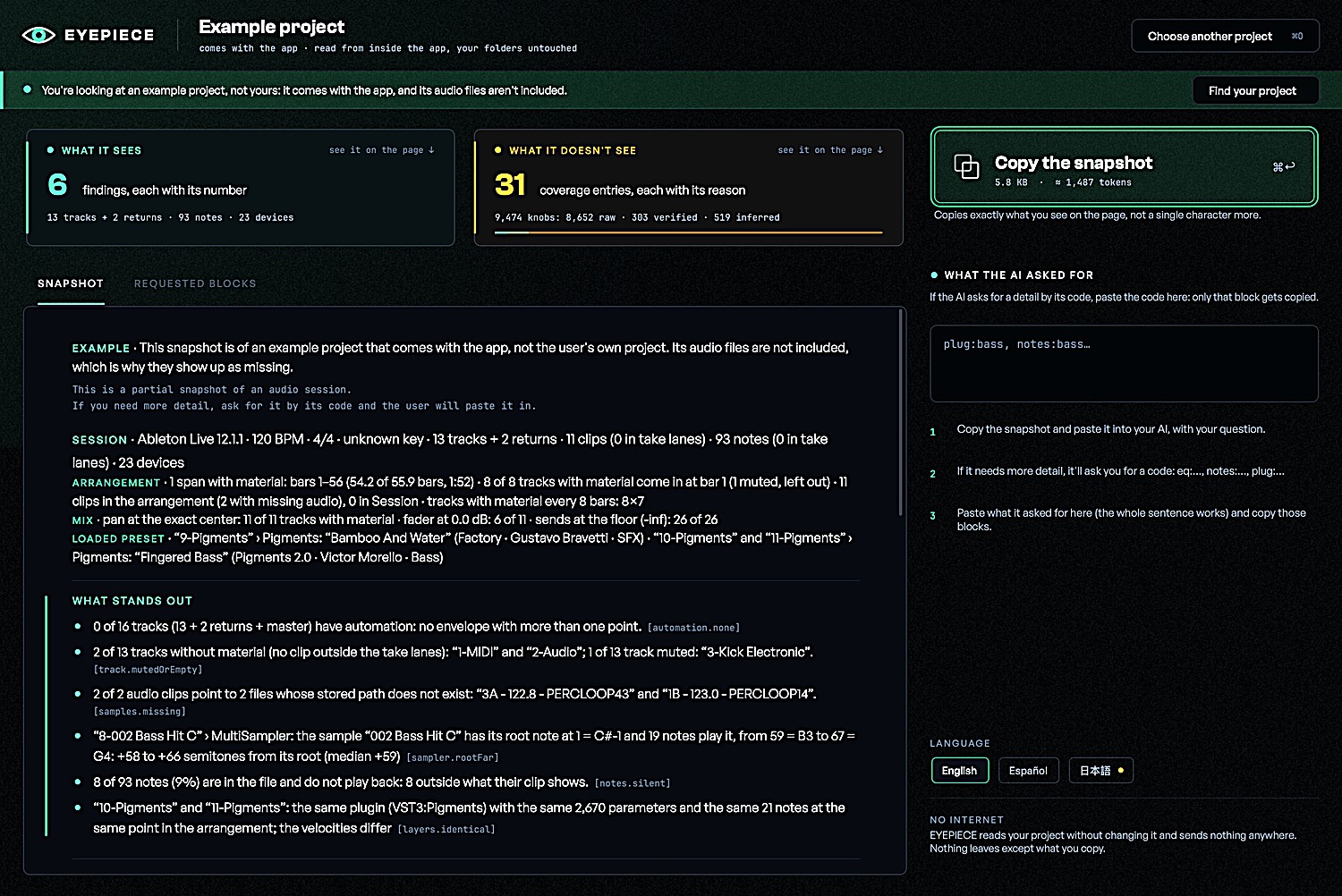

EYEPIECE's window with the example project that comes with the app: WHAT IT SEES (6 findings, each with its number), WHAT IT DOESN'T SEE (31 coverage entries, each with its reason), the Copy the snapshot button and the snapshot itself — SESSION, ARRANGEMENT, MIX, LOADED PRESET and WHAT STANDS OUT.
// What it sees

Your project, as text your AI can read.

Open the app and it finds the project you saved most recently; put the plug-in on a track and it reads the project it is in. Either way it reads the file and writes a snapshot: what is in the session, what stands out — each line with its number and the id of its rule — and what it did not read, each with its reason. You see the snapshot before you copy it. Your AI gives the advice; EYEPIECE only reads.

SESSION

The DAW and its version, tempo, time signature, tracks, clips, notes and devices, in one line. In the example: Ableton Live 12.1.1 · 120 BPM · 4/4 · 13 tracks + 2 returns · 93 notes.

ARRANGEMENT · MIX

The shape of the song — where there is material and which tracks come in when — and the mixer: pans at the centre, faders at 0 dB, sends at the floor.

LOADED PRESET

For Arturia plugins, the preset that was loaded: “9-Pigments” › Pigments: “Bamboo And Water”. Whether it was edited afterwards, the file doesn't say.

WHAT STANDS OUT

Findings, each with its number and the id of the rule that produced it: audio files that are not there, notes that never play back, tracks without material, identical layers. It points; it doesn't judge.

COVERAGE

What it did not read or could not verify, each with its reason. The example has 31 entries; the last one: “the audio: nothing was listened to or measured”.

AVAILABLE ON REQUEST

The detail stays out of the summary. If your AI needs it, it asks for a code — eq:, notes:, plug: — and EYEPIECE copies just that block.

// The example, as it comes out
SESSION · Ableton Live 12.1.1 · 120 BPM · 4/4 · unknown key · 13 tracks + 2 returns · 11 clips (0 in take lanes) · 93 notes (0 in take lanes) · 23 devices
ARRANGEMENT · 1 span with material: bars 1–56 (54.2 of 55.9 bars, 1:52) · 8 of 8 tracks with material come in at bar 1 (1 muted, left out) · 11 clips in the arrangement (2 with missing audio), 0 in Session · tracks with material every 8 bars: 8×7
MIX · pan at the exact center: 11 of 11 tracks with material · fader at 0.0 dB: 6 of 11 · sends at the floor (-inf): 26 of 26
LOADED PRESET · “9-Pigments” › Pigments: “Bamboo And Water” (Factory · Gustavo Bravetti · SFX) · “10-Pigments” and “11-Pigments” › Pigments: “Fingered Bass” (Pigments 2.0 · Victor Morello · Bass)
WHAT STANDS OUT
…
  · 2 of 2 audio clips point to 2 files whose stored path does not exist: “3A - 122.8 - PERCLOOP43” and “1B - 123.0 - PERCLOOP14”. [samples.missing]
…
  · 8 of 93 notes (9%) are in the file and do not play back: 8 outside what their clip shows. [notes.silent]
…
COVERAGE · 31 entries, each with its reason (the detail: coverage:all)
…
  · the audio: nothing was listened to or measured — this version reads only the project file (no stems, no spectrum, no loudness): every number in this snapshot comes from the file
Lines from the snapshot of the example project that comes with the app, in English. “…” marks lines left out here.
// New in 0.2 · the plug-in

Inside your DAW, reading the project it is in.

EYEPIECE 0.2 adds the plug-in: VST3 and AU on macOS, VST3 on Windows. Put it on any track: the audio passes through untouched, bit for bit and with zero latency — EYEPIECE doesn’t listen to it. In your plug-in list it is an effect (Fx|Tools), not an analyzer.

  1. Put EYEPIECE on any track. It shows up in your DAW as an effect.
  2. Save your project. EYEPIECE reads the saved project, not what is open: it looks for the project that carries its mark and shows that one.
  3. Copy the snapshot and paste it into your AI, as with the app.
0.2.1 · On Windows, closing a project no longer leaves the DAW waiting

When the DAW closed the last instance and unloaded the plug-in, EYEPIECE let go of its fonts right then, in the middle of the unload, while Windows held the DAW still. Now it lets go of them when the last instance closes, before the unload, and loads them again if another instance needs them. The window looks the same, and what EYEPIECE reads did not change.

Only the project it is in

A DAW doesn’t tell a plug-in which project is open, so EYEPIECE keeps a small random mark in the state your DAW saves inside the project. After you save, it shows the project that carries its mark — not the project you saved last. Before the first save it asks you to save; it never shows another project instead.

Next time, straight to it

Once found, it remembers where the project is and reads it directly the next time you open the window, always checking the mark first. Saved it somewhere EYEPIECE doesn’t look? Show it to me once lets you pick it in the system dialog.

Your latest sets, in Live

When it can’t find its project, it says briefly why it needs a save and, in Ableton Live, lists the sets you opened last, so you pick yours with one click — it still checks the mark.

Live, FL Studio and Logic

It finds its mark in Ableton Live sets (VST3 and AU), FL Studio projects and Logic projects.

S, M and L

Three window sizes, like TELESCOPE and ORBIT. The size is saved with each instance, and no text is smaller than 11 px.

Closing never kills work

Closing the window or removing the plug-in while it is still looking for its project, or reading one, waits for that work to finish instead of killing it: killing a thread can leave the DAW hung.

The app reads exactly as 0.1 did: on 40 real projects, in Spanish and in Japanese, its snapshot is identical to 0.1.0’s, byte for byte (80 of 80).

// With TELESCOPE

TELESCOPE measures. EYEPIECE shows what TELESCOPE heard.

TELESCOPE measures the audio in your DAW; EYEPIECE reads the project. The eyepiece is the part of the telescope you put your eye to — and from 0.2 the two talk: with TELESCOPE 0.3 on a track, usually the master, the plug-in shows in its own tab what TELESCOPE measured while the transport ran with EYEPIECE open. EYEPIECE itself still doesn’t listen: TELESCOPE measures, and leaves only numbers in a local file.

EYEPIECE’s plug-in window at size L, on the WHAT TELESCOPE HEARD tab of a test project: how long TELESCOPE heard, the summary (integrated loudness, max true peak, LRA, correlation), the key TELESCOPE estimated, by arrangement stretch, by block of 8 bars, and VERDICT’s findings, each with its rule’s id and its numbers; on the right, the Copy what TELESCOPE heard button.
The plug-in at size L, on the What TELESCOPE heard tab, with a test project.
The numbers

Integrated loudness, true peak, LRA, stereo correlation and the momentary and short-term maxima — and the key TELESCOPE estimated.

Bar by bar

Per stretch of the arrangement and per 8-bar block; the blocks where nothing was heard go together in one line.

VERDICT’s findings

Each with the id of its rule and its numbers.

In the snapshot

One summary line. The detail stays available on request: audio:telescope, audio:bars.

Without TELESCOPE

The tab says how to get it. TELESCOPE is free and a separate download.

It needs TELESCOPE 0.3 or newer in the same DAW session: TELESCOPE, free →

// How to use it

Open it. Copy the snapshot. Paste it into your AI.

  1. Open EYEPIECE. It finds the project you saved most recently on its own — or drop one on the window. No project at hand? See an example project: it comes with the app.
  2. Copy the snapshot. You see it before you copy it, and the button copies exactly what you see on the sheet, not one character more.
  3. Paste it into your AI, with your question. If it's missing a detail, it will ask you for a code: paste that into EYEPIECE and copy those blocks.

When you save the project again, EYEPIECE notices, reads it again and tells you. It never copies on its own.

// What it doesn't see

It reads the file. It doesn't listen.

Every number in the snapshot comes from the project file. What the file doesn't say, EYEPIECE doesn't guess — and the snapshot writes down what it left out.

No audio

EYEPIECE reads only the project file: it listens to nothing and measures nothing — no stems, no spectrum, no loudness. The plug-in lets the audio through untouched, bit for bit; the numbers under “What TELESCOPE heard” are TELESCOPE’s.

Ableton Live, in depth

Tracks, clips, notes, devices, third-party plugins and the mix. Verified up to Live 12.3.7; a newer set is read anyway, and the snapshot says so.

Logic and GarageBand, first level

Tempo, time signature, key, how many tracks and the audio files. Not the tracks, the mix, the plugins or the notes: they live in the project's binary, which this version doesn't read.

FL Studio, first level

The version, the tempo, the Channel Rack channels with their type, the patterns and the plugins by name — not the notes, the playlist, the mix or the knobs. Verified with 181 projects from FL 10 to FL 2026.

Knobs, with their evidence

Each native parameter comes out verified, inferred (†) or raw, and the rules only look at the verified ones. In the example, of 1,444 native parameters: 303 verified, 519 inferred, 622 raw.

No advice, no AI inside

It doesn't suggest, recommend or rate: “should”, “better” or “professional” are banned from its sentences. There is no AI inside — the advice comes from the one you already use.

// Requirements

A Mac — or a DAW — and your project.

System: macOS 11 or newer — the app, VST3 and AU · Windows 10 or 11, 64-bit — the VST3 plug-in only Chip: Apple Silicon and Intel (universal) · x64 on Windows Plug-in: an effect (Fx|Tools) for any track · the audio passes through untouched, bit for bit, with zero latency Projects: Ableton Live (.als) · Logic · GarageBand · FL Studio (.flp) Tried in a real DAW: Ableton Live 12.2.5, on macOS — on Windows, not yet With TELESCOPE: TELESCOPE 0.3 or newer, in the same DAW session Interface: English · Español · 日本語 — English and Spanish are reviewed; Japanese is a translation nobody has reviewed yet, and the window says so Internet: not needed · it sends nothing Price: free Windows: the VST3 plug-in only, unsigned, in a ZIP · the app is Mac-only
// Privacy

No internet. Your project, untouched.

EYEPIECE reads your project without changing it and sends nothing anywhere. The only thing that leaves is what you copy.

Read, never modified

It opens the project to read it, never to write it.

No network

Not one request, no telemetry, no server: neither the app nor the plug-in uses the internet.

You choose what leaves

You read the snapshot before you copy it. What you paste into an AI goes to that AI, under its own rules.

In your project

The plug-in state your DAW saves inside the project holds EYEPIECE’s mark (a random identifier), the window size, when it was last saved and the path of the project where it found its mark. That path never goes into the snapshot.

On your disk, only while it is in your DAW

A small file saying EYEPIECE is there, in ~/Library/Caches/OVNI/oido/ on macOS and %LOCALAPPDATA%\OVNI\oido\ on Windows. TELESCOPE 0.3 shares its numbers only when it sees that file; EYEPIECE renews it every 2 seconds and deletes it when its last instance goes away.

// Known limits

The limits we know of.

Tried only in Ableton Live

In a real DAW, 0.2 has been tried only in Ableton Live 12.2.5, on macOS. Logic, FL Studio and the other DAWs are covered by automated tests with project files built like theirs, not yet by a session in the DAW. On Windows nothing has been tried in a real DAW yet.

Latest sets: Live only

The list of your latest sets is for Ableton Live only: other DAWs don’t keep it where EYEPIECE can read it.

No tonal balance against a reference

TELESCOPE 0.3 doesn’t share it; EYEPIECE says so, with TELESCOPE’s code (TONAL_BALANCE_NOT_WINDOWED).

Sets in Downloads or Music

A recent set that lives where macOS asks for permission is picked through the system dialog: it opens in the set’s folder, but the set isn’t preselected.

Japanese, not reviewed

The Japanese text was translated by a language model and nobody who speaks Japanese has reviewed it; the window says so.

No advice, no AI inside

As in 0.1: it doesn’t suggest, recommend or rate. The advice comes from the AI you already use.

EYEPIECE is free.

On the Mac, one installer (.pkg) puts the app in Applications and the plug-in (VST3 + AU) in the system plug-in folders — no dragging, no Terminal. Universal (Apple Silicon and Intel), macOS 11 or newer, signed and notarized by Apple; it replaces 0.1’s app. On Windows: the VST3 plug-in only (Windows 10 or 11, 64-bit), unsigned, in a ZIP — not yet tried in a real DAW. The app is Mac-only.

macOS 11+ · app + VST3 · AU (.pkg) · universal · signed & notarized by Apple · Windows 10+ · the VST3 plug-in only · unsigned ZIP, not yet tried in a real DAW

5031 downloads and counting

EYEPIECE is free. The licences of the third-party code and fonts it uses travel inside the app and inside each plug-in.

Free · macOS 11+ · Apple Silicon and Intel · Windows: the VST3 plug-in only

First time: open the .pkg and the Installer puts the app in Applications and the plug-in in the system plug-in folders — then rescan plug-ins in your DAW. To find your projects the app looks in Documents, Desktop and Music, so macOS may ask you for access (Music shows up as Apple Music). Step by step, Mac and Windows → · Privacy ↑
